3 Phase MOA Metal Oxide Arrester MOA Tester HYBL-106

Ⅰ. Introduction

• Uses the advanced microcomputer as the control unit, it is whole intellect operation, and has the advantages of strong anti-interference capability and accurate and reliable measurement etc.
• It is an ideal test device to test on the spot and in laboratory various related electric parameters of zinc oxide lightning arrester.

Ⅱ. Main Features

1. Large-screen LCD Display, English user menu, Easy to use.
2. Use Precision Sampling and Fourier harmonic analysis techniques to get reliable data.
3. High-speed magnetic isolation digital sensor directly capture the input voltage and current signals. Guarantee input data reliability and security.
4. With resistive current fundamental peak output, side-phase correction functions.
5. Rechargeable battery, calendar clock, micro printer, can store 120 group measurement data

III. Main Specs

1. AC input voltage measurement range(RMS): 20-220V

2. Total leakage current measurement range (RMS): 0-10mA

3. Resistant leakage current measurement range (RMS): 0-10mA

4. Capacitive leakage current measurement range (RMS): 0-10mA

5. Total leakage current harmonic component measurement range (RMS):0-10mA

6. Measurement errors for voltage and current:<2%RDG + 1D

7. Power supply: AC220V±10 % 50Hz/60Hz (Battery support optional)

8. Environment temperature: 0~50°C

9. Humidity: ≤85%RH

10. Weight of MOA Tester: 10KG

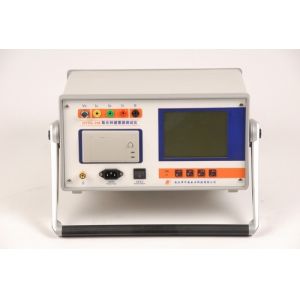

Product Picture:

Wuhan Huaying Electric Power Tech & Science Co.,ltd, founded in 1997, engaged in the designing, manufacturing and selling of electrical test equipments.

Our products include: HV Testing Instruments, Transformer Test Sets, Relay Test Set, Circuit Breaker Test Set, CT/PT Test Set, Cable Test Set, Power Plant Test Set, HV Meter, Signal Recorder, etc. They are abroad used in electric power, energy, metallurgical, chemical, mining industries.

We have obtained the ISO9001 quality system certification and all products conform to the international IEC or Chinese state standards. We have obtained honors such as Quality Management System Certification, title of High Technology Company, License of Manufacturing Measure Device.

Warm welcome customers to visit our company, and we will do our best to support you!
